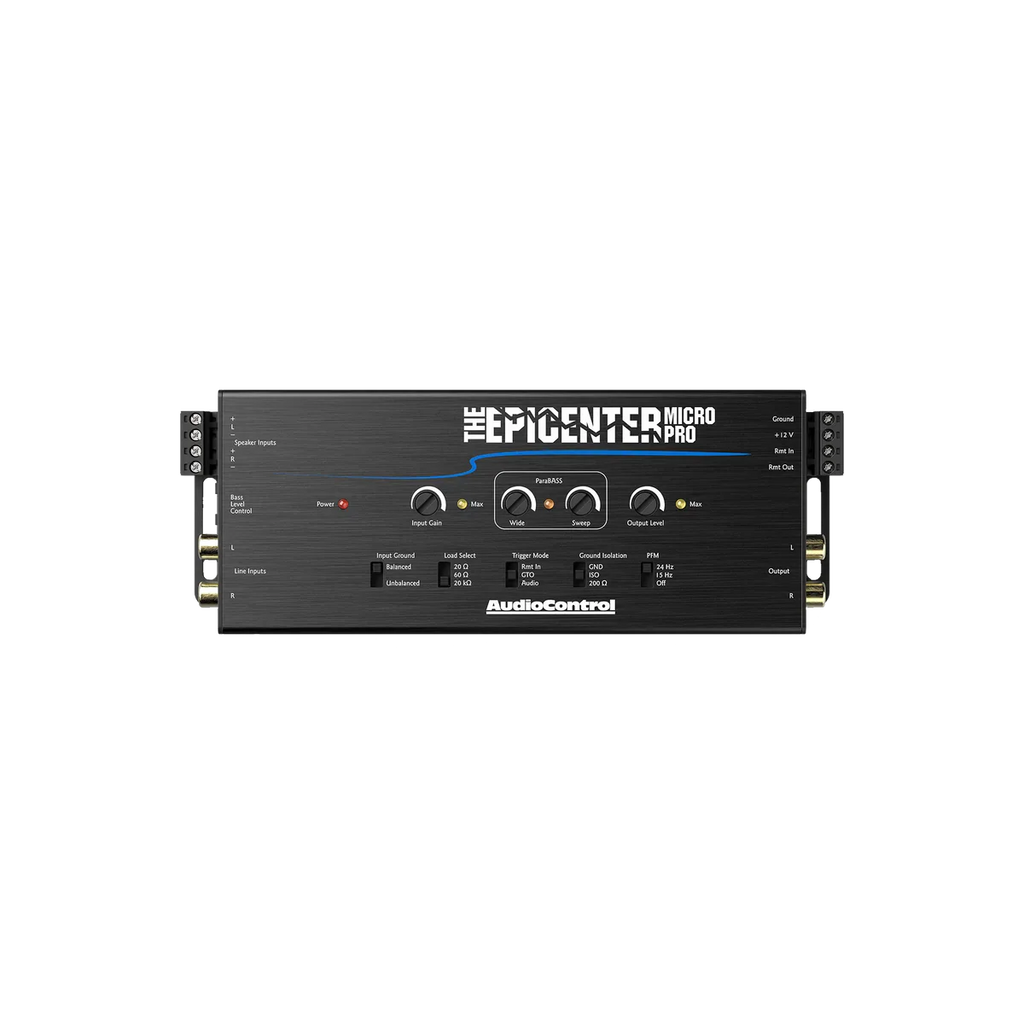

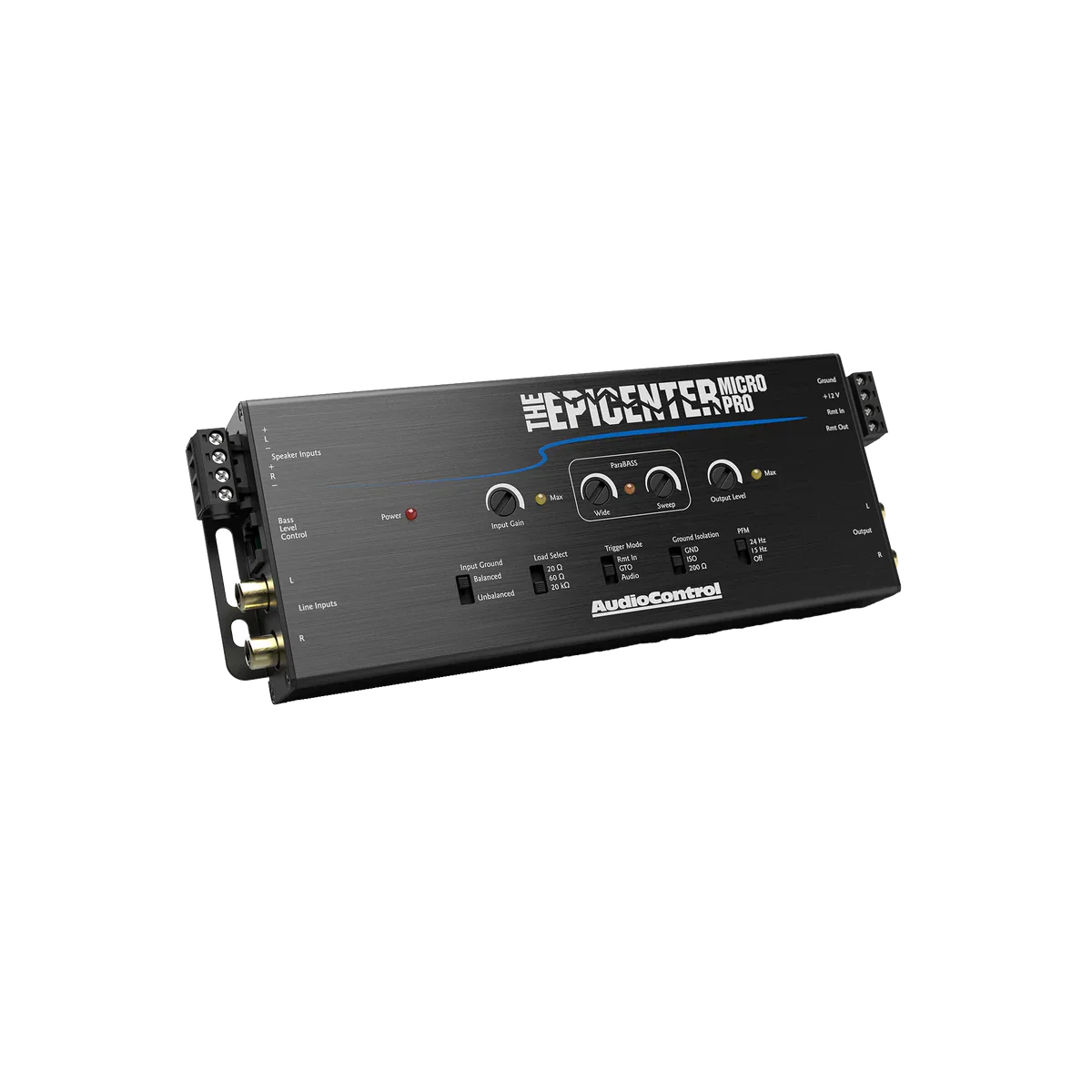

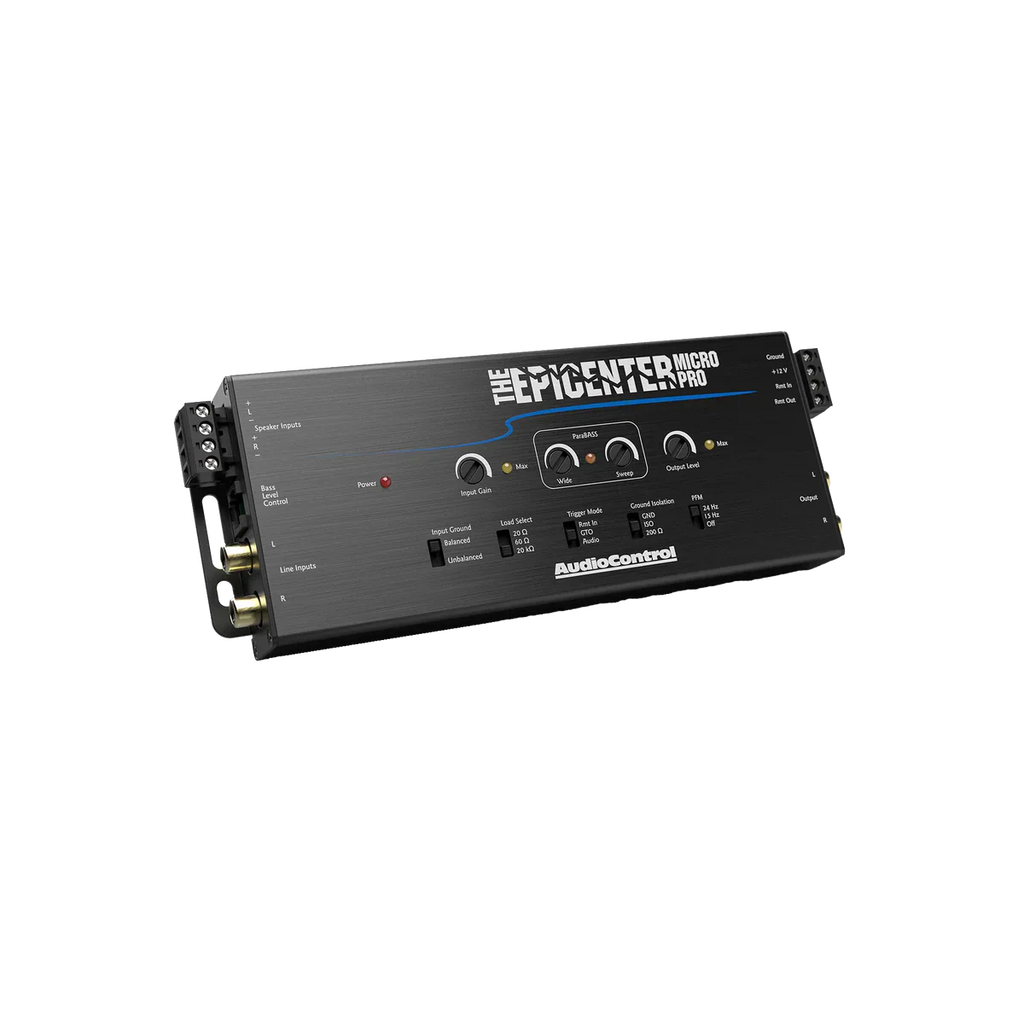

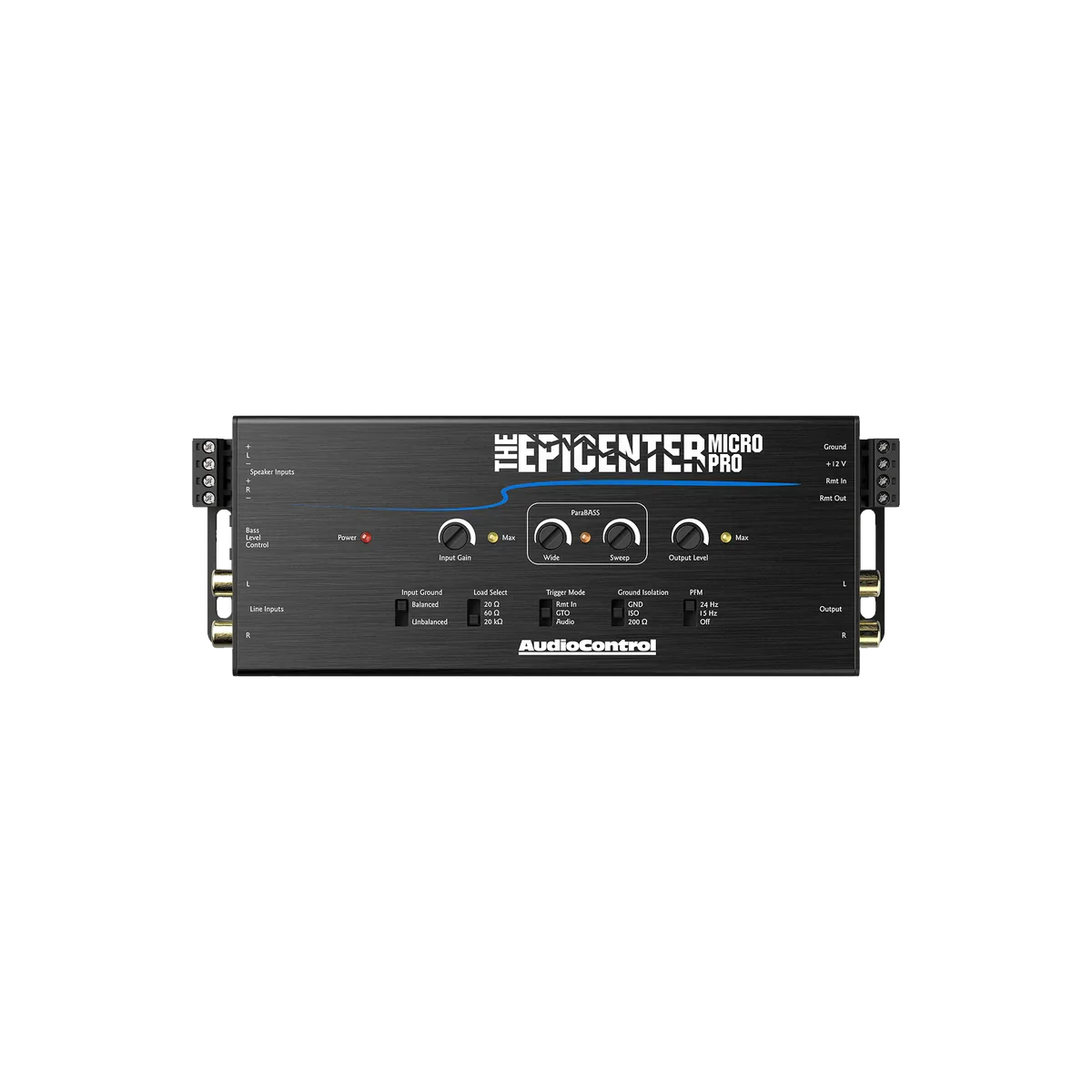

AudioControl Epicenter Micro PRO Bass Restoration Processor & Line Output Converter
• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• ParaBASS® Controls for Bass Shaping: Precisely sculpt and fine-tune your bass to perfectly match your music, vehicle, and personal preference.
• Selectable PFM Subsonic Filter with Bypass: Protect your speakers and ensure tighter, more controlled bass by filtering out inaudible, power-wasting frequencies.
• Built-in Line Driver for Optimal Output Voltage: Boosts your audio signal for a strong, clean path to your amplifiers, minimizing noise and maximizing sound quality.
• Balanced Line Level Inputs: Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
• Speaker-Level Inputs: Seamlessly integrate a factory stereo without needing RCA outputs, saving money and simplifying upgrades.
• Load Selection Switch: Ensures perfect compatibility with modern factory stereos, preventing issues and guaranteeing a smooth upgrade.
• GTO and Audio Sense Turn On: Automatically powers up the unit when your stereo is active, making installation simpler and operation seamless.
• 10 Volt Maximum Output Level: Sends a strong, clean signal to your amplifier, unleashing maximum power and dynamic impact.
• Conformally Coated PCB: A protective layer against moisture, dust, and temperature swings, improving the durability and reliability of The Epicenter Micro PRO.

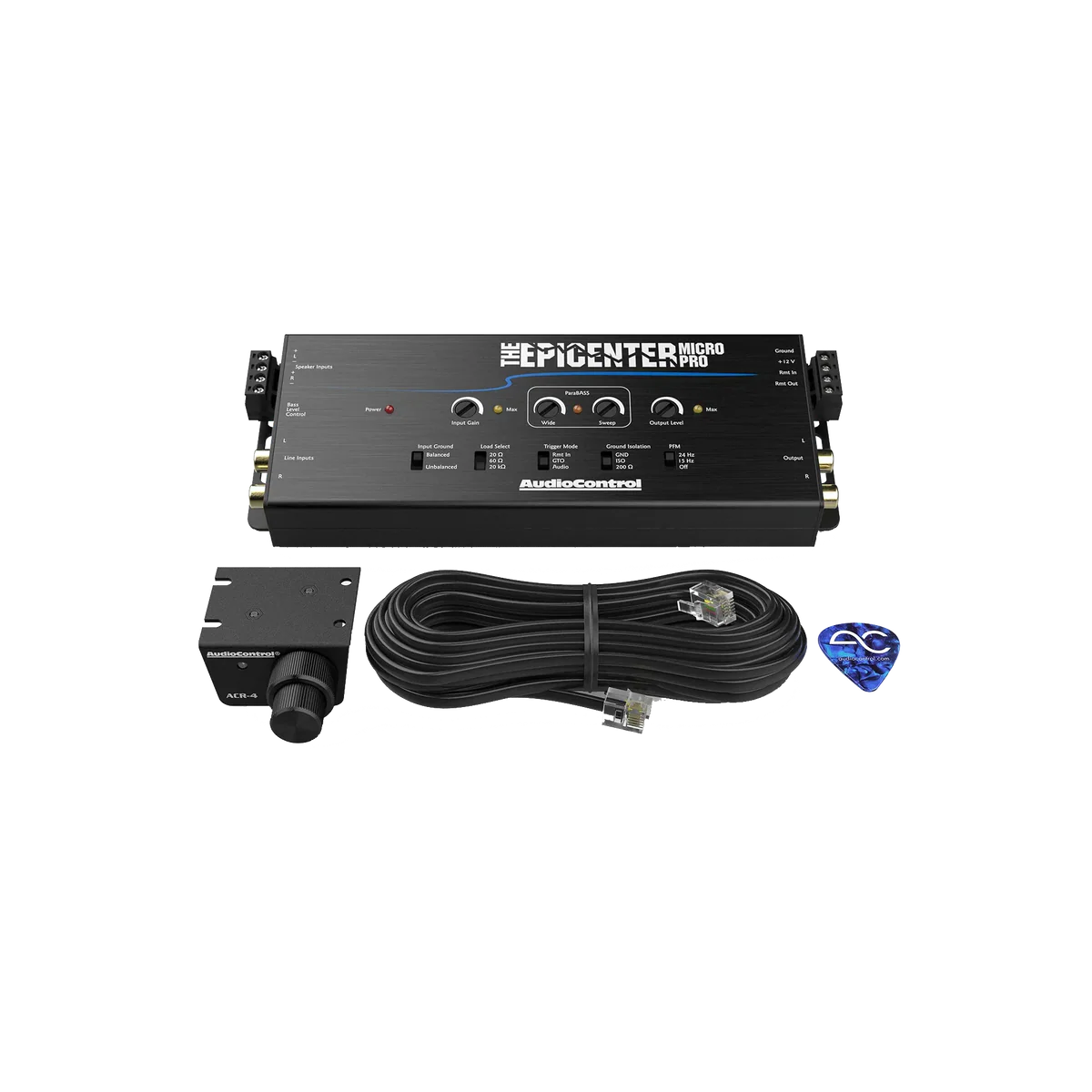

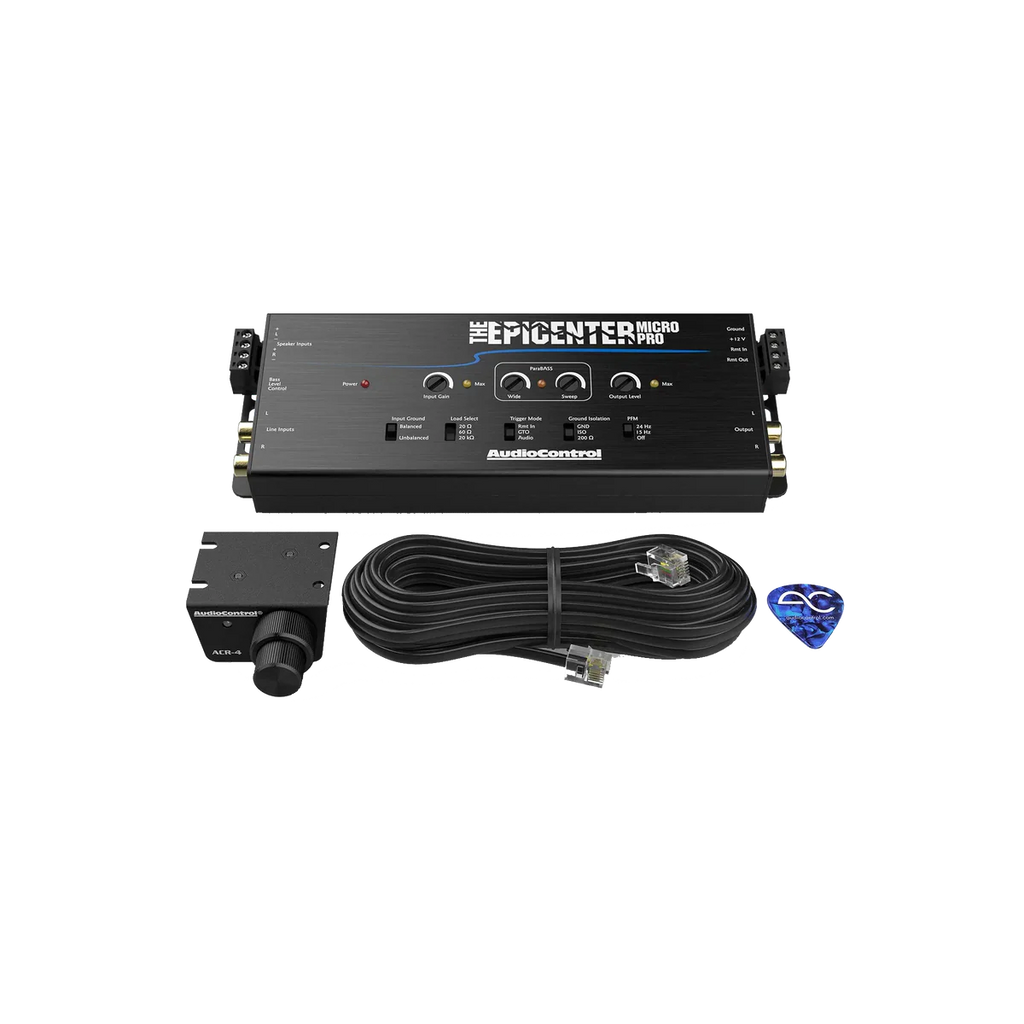

• ACR-4 Dual-Knob Remote Level Control Included: Command your bass instantly from the driver's seat, fine-tuning levels and bass restoration on the fly.
SPECIFICATIONS
INPUTS
- Maximum Line Level Input: 10Vrms
- Maximum Speaker Level Input: 40V / 400W (20kΩ setting)
- Line Level Input Impedance: 7kΩ
- Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
OUTPUTS
- Maximum Output Level (THD<1%): 9Vrms, 13V peak
- Output Impedance: 150Ω
PERFORMANCE
- Total Harmonic Distortion: 0.03%
- Signal to Noise: >105 dB
- Frequency Response: 10 Hz – 22 kHz ±1 dB
- PFM Filter (High Pass): Selectable 24 Hz, 15 Hz, or Bypass
CONTROL
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
GENERAL
- Power Supply: High Headroom PWM Switching
- Current Draw: 300 mA
- Recommended Fuse Rating: 1 A
WEIGHTS & DIMENSIONS
- Dimensions: 8″L x 3″D x 1″H
- Weight: 0.9 lbs
