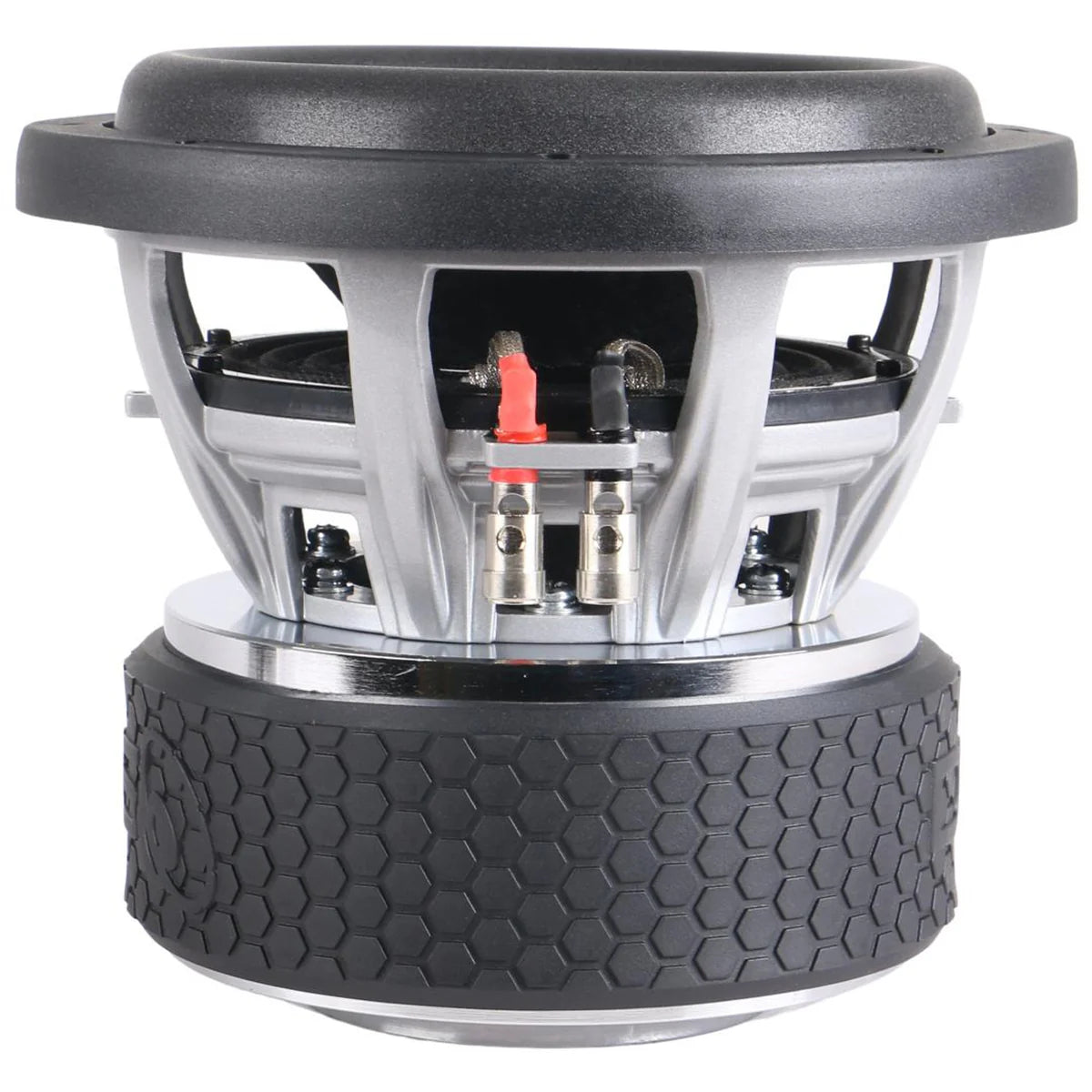

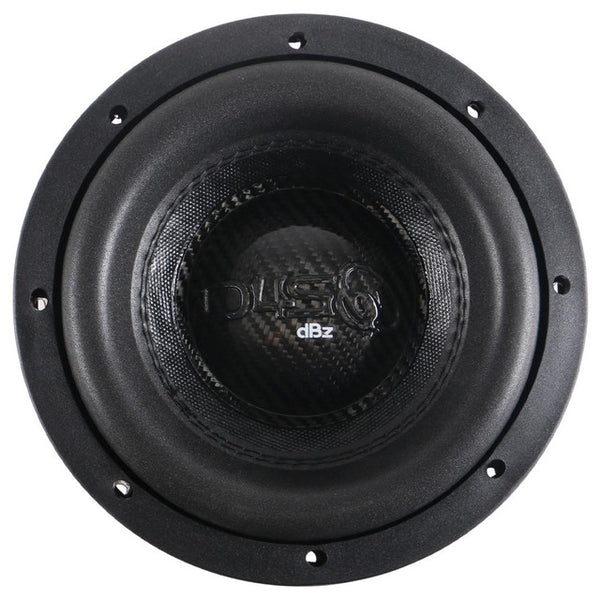

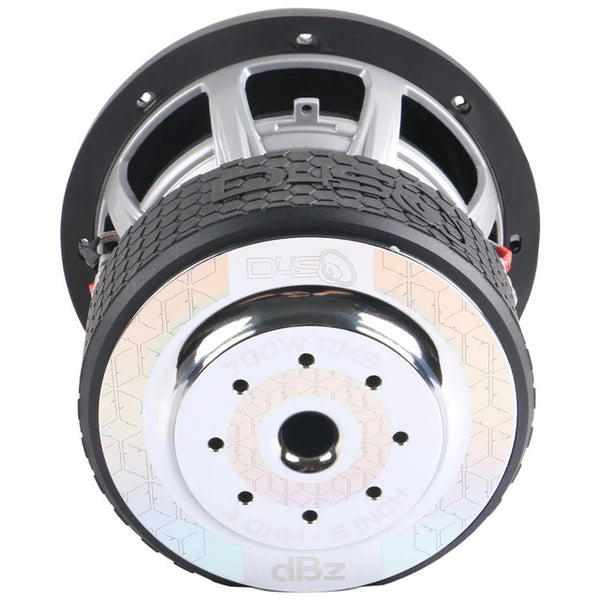

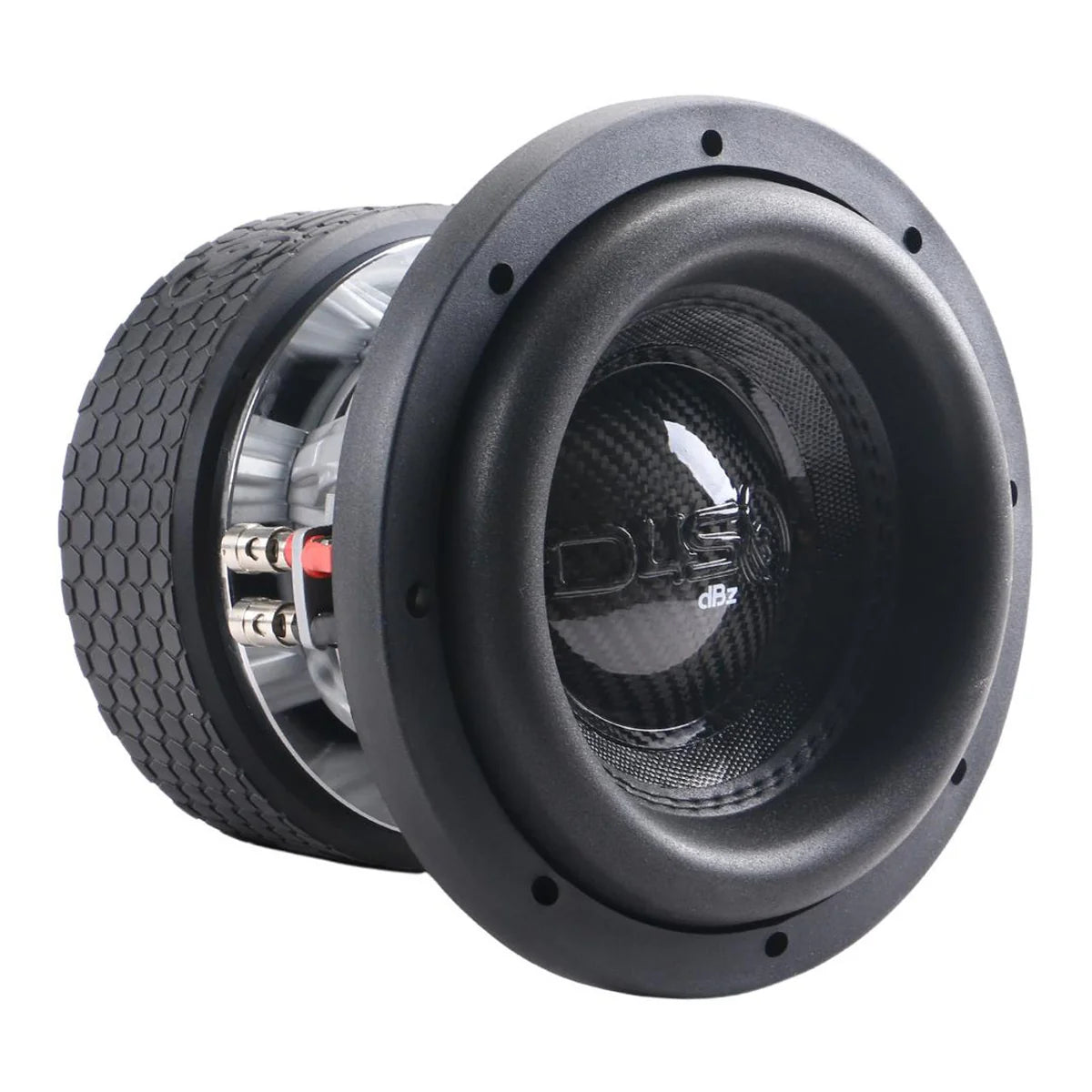

Down4Sound DBz 8" 700W RMS Subwoofer DVC

QUICK NOTES:

• RMS OUTPUT: 700W RMS
• COIL SIZE: 2.5 INCH
• CUTOUT: 7.36 inches (187 mm)
• MOUNTING DEPTH: 6.61 inches (168 mm)
• NET WEIGHT: 23.6 lbs (10.7 kg)
• GROSS WEIGHT: 26.9 lbs (12.2 kg)
• XMAX : 21 mm (one-way)
• MOTOR SIZE: 6.69 in - 170 mm | 3.35 inches (Radius)

Precision Engineering: Engineered with an optimized motor strength (BL Product: 24.797 T·m) and an effective piston area (Sd) of 210.105 cm² for powerful sound output at an affordable price.

Technical Specifications:

• Revc (DC Resistance): 6.400 Ohm
• Resonance Frequency (Fo): 46.157 Hz
• Total Moving Mass (Mms): 202.138 g
• Suspension Compliance (Cms): 57.318 μm/N
• Equivalent Volume (Vas): 3.290 L
• Sensitivity (SPL): 79.2 dB
• Qms (Mechanical Q): 1.895
• Qes (Electrical Q): 0.618
• Qts (Total Q): 0.466
• Voice Coil Inductance (Le): Not specified
• Mechanical Resistance (Rms): 0.757
• Sealed Enclosure: .3 cubic foot
• Ported Enclosure: 1 cubic feet
