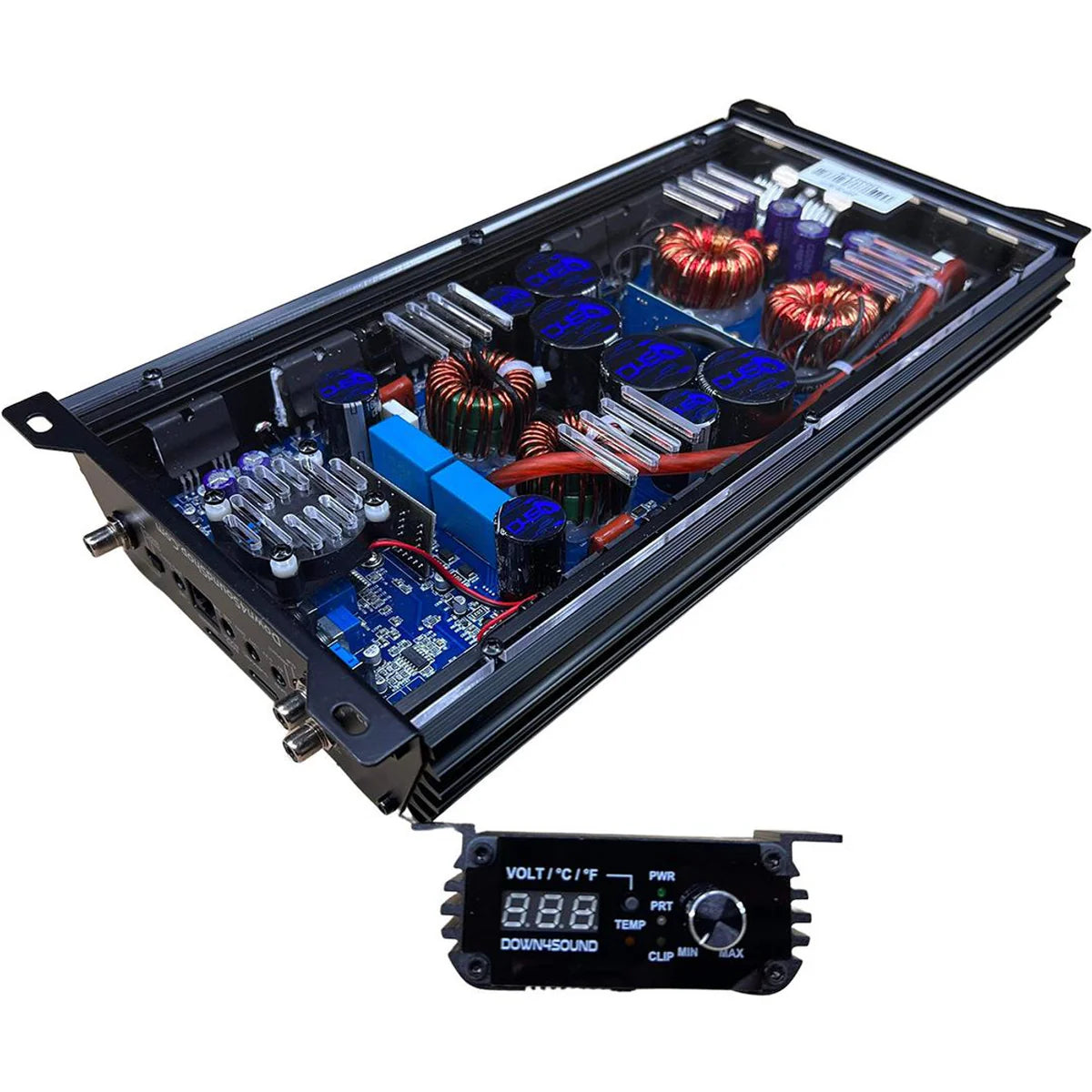

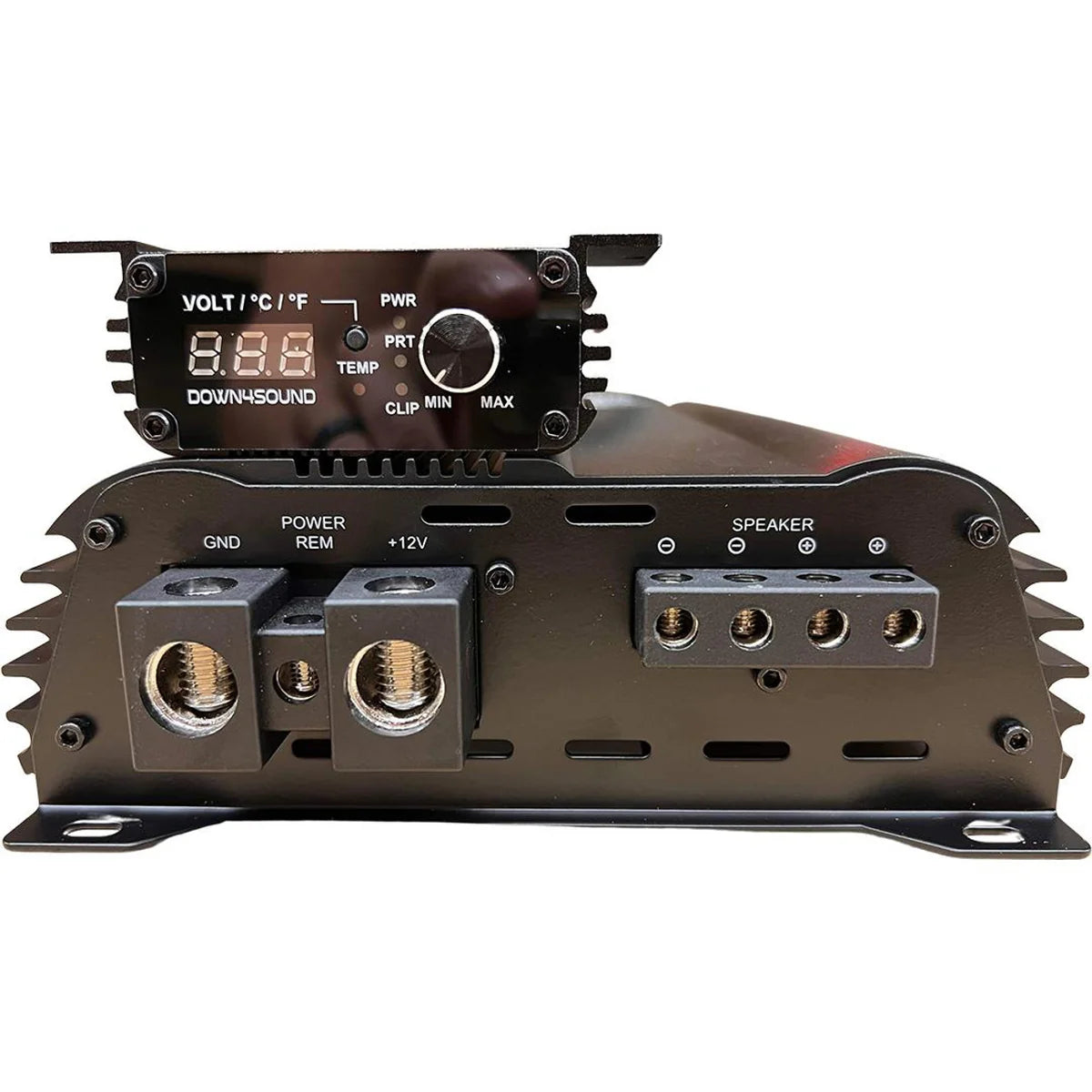

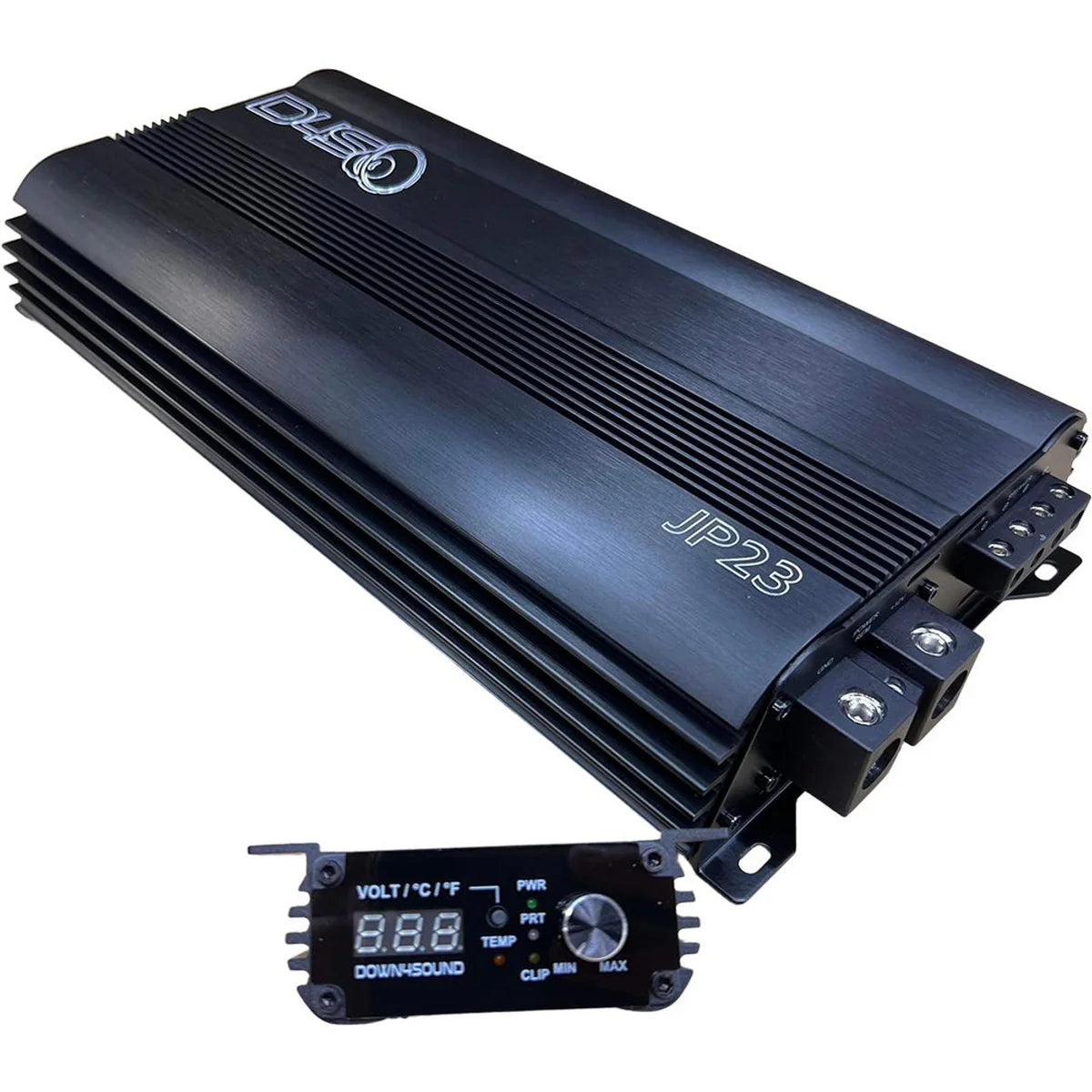

Down4Sound JP23 v2 2800W RMS Class D Monoblock Amplifier

Key Features:

• 2800W RMS power at 1-OHM for high-quality sound reproduction
• Sleek black color and aluminum bass knob for added style
• Upgraded thermal management with quiet high-speed cooling fans
• Compact design, 23% smaller than the previous JP23 version
• Versatile functionality with power clip, protect, and voltage features

Specifications:

• RMS power, 1 ohm: 2800W x 1 @ 14.4V
• RMS power, 2 ohms: 1800W x 1 @ 14.4V
• RMS power, 4 ohms: 800W x 1
• RMS power, 2 ohm Linked: 5600W x 1
• Frequency Response: 10Hz - 270Hz
• Low Pass Filter: 35Hz - 250Hz
• Subsonic Filter: 10Hz - 50Hz
• Bass Boost: 0-9 dB
• Input sensitivity: 6V - 0.2V
• Signal to Noise Ratio: 97dB
• T.H.D @ 4 ohm: less than 0.1%
• Single unit fuse rating: 300A
• Strapped fuse rating: 600A
• Length x Width x Height (inches): 13.38" x 7.40" x 2.24"
• STRAPPABLE DIGITAL MONOBLOCK AMPLIFIER
• STABLE INTO 1OHM MONO LOAD
• HIGH-SPEED MOSFET POWER SUPPLY
• VARIABLE LOW PASS FILTER
• VARIABLE SUBSONIC FILTER
• 4 WAY PROTECTION CIRCUITS: THERMAL, HIGH & LOW VOLTAGE, SPEAKER SHORT AND DC
