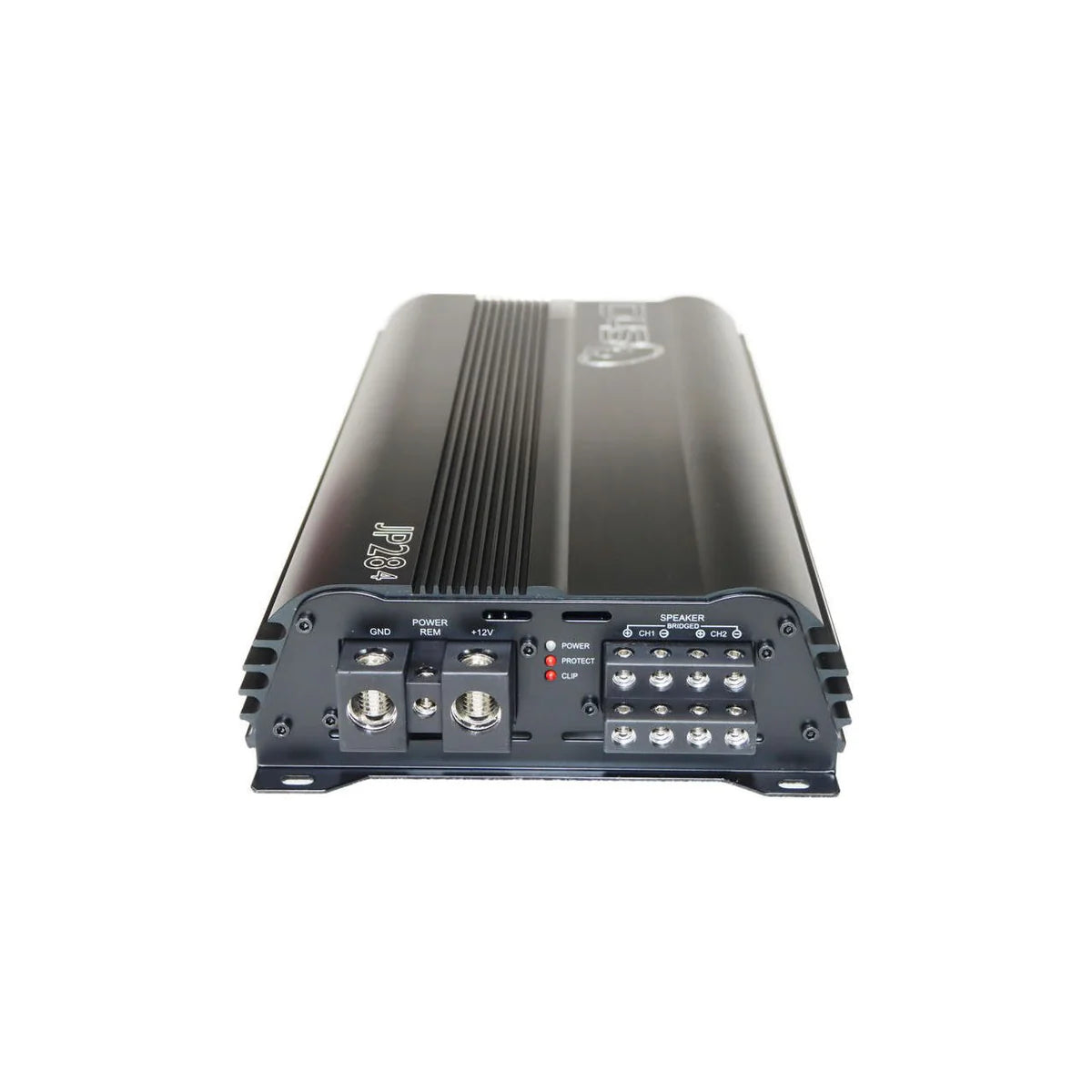

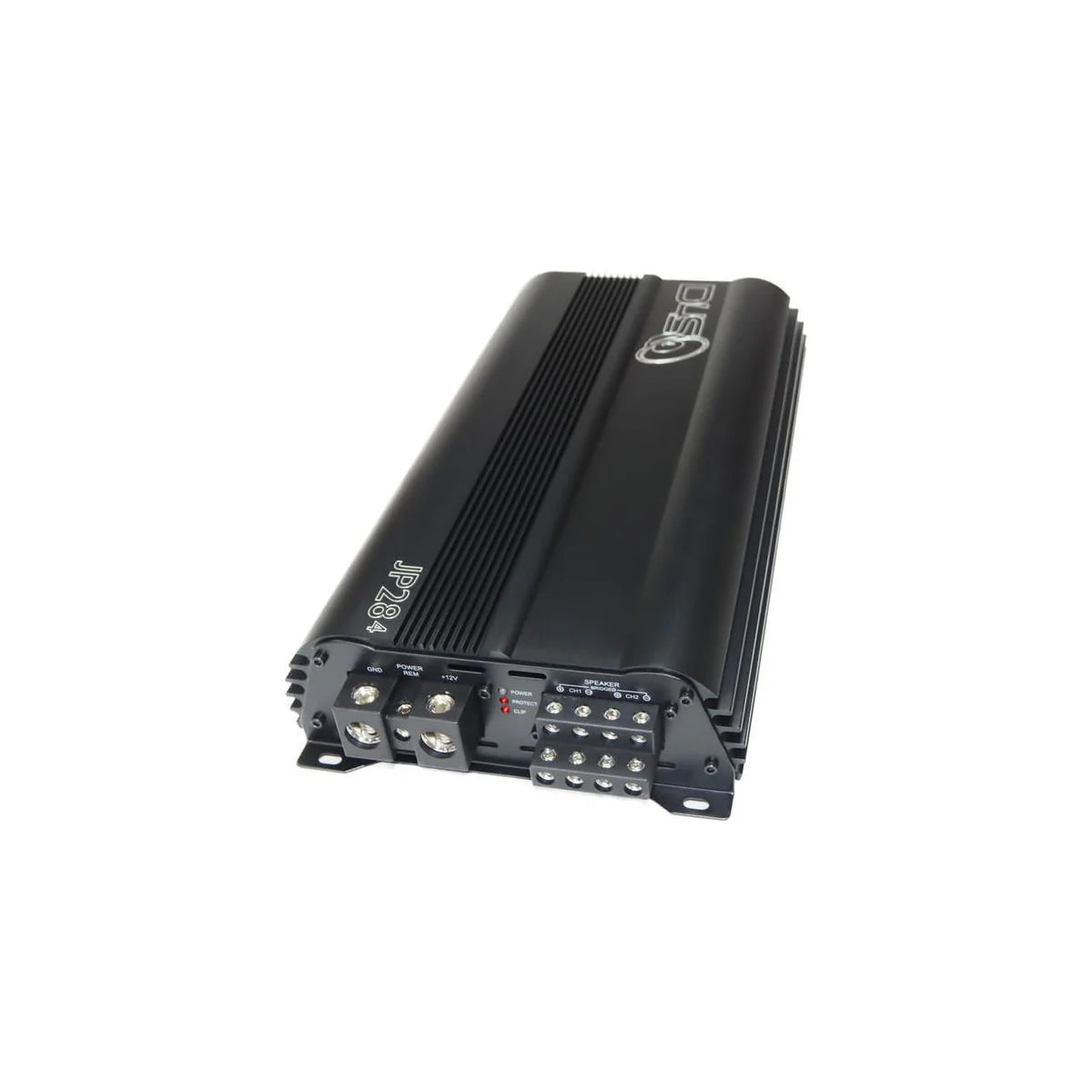

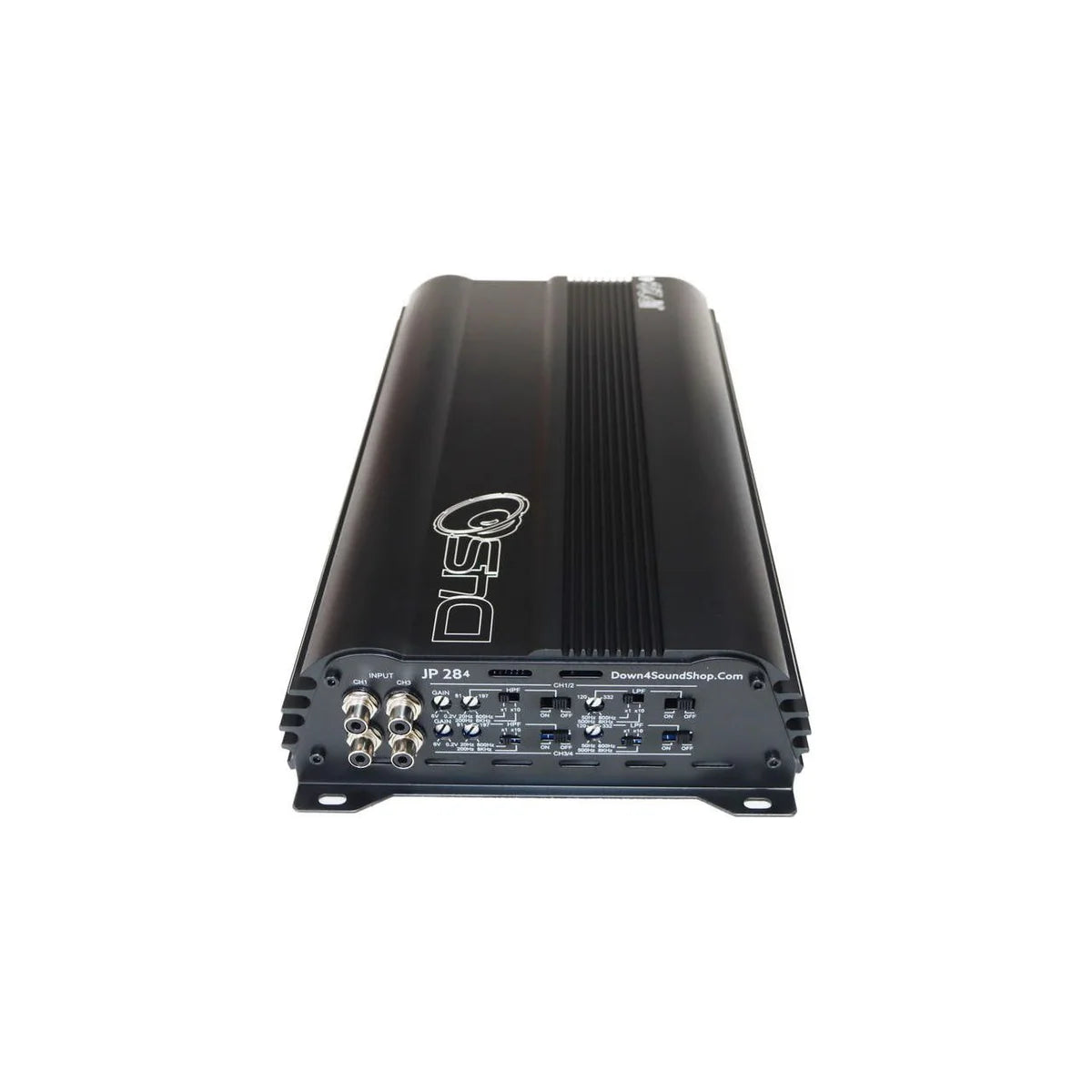

Down4Sound JP284 3000W 4-Channel Amplifier

Specifications:

• 4 Ohm RMS Power: 284W x 4 channels
• 2 Ohm RMS Power: 460W x 4 channels
• 4 Ohm RMS Bridged Power: 888W x 2 channels
• Frequency Response: 10Hz – 23KHz
• Signal to Noise: 95dB
• Damping Factor: 150
• Input Sensitivity: 6V – 0.2V
• CH1/2 & Ch3/4 Filters:
  • High Pass Filter: 20Hz – 800Hz with a multiplier of x1, x10 (200Hz-8KHz)
  • Low Pass Filter: 50Hz – 800Hz with a multiplier of x1, x10 (500Hz-8KHz)
  • Bandpass Capable
  • Clip in/Clip out for Ch1/2 & Ch3/4
• Input Connections:
  • 0 Gauge Input for Power and Ground
  • Up to 12 Gauge Input on Speakers
  • Tiffany Style RCA Connection
• Working Voltage: 9 to 15.5 Volts
• Dimensions: 340mm L x 190mm W x 57mm H (13.38 x 7.48 x 2.24 inches)
